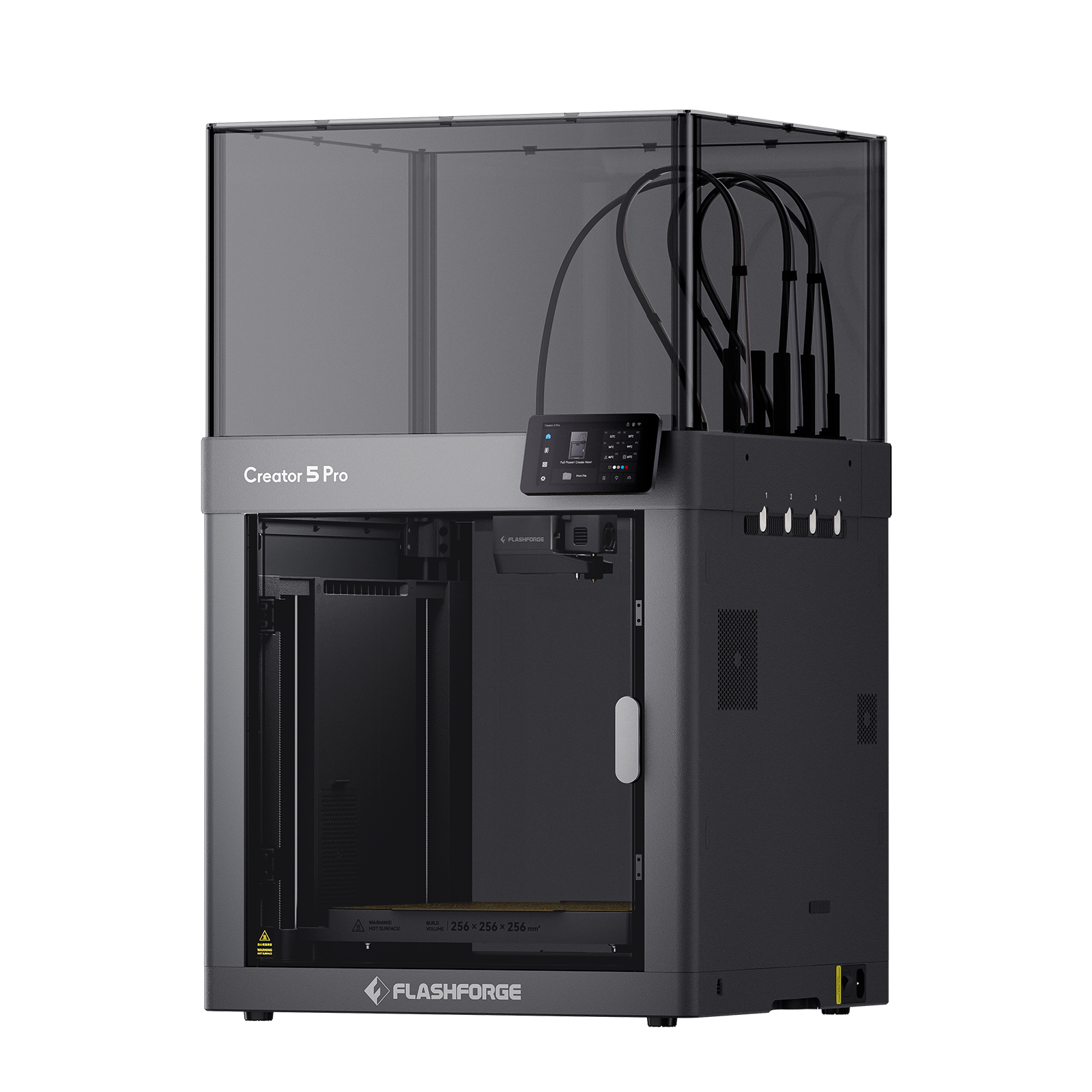

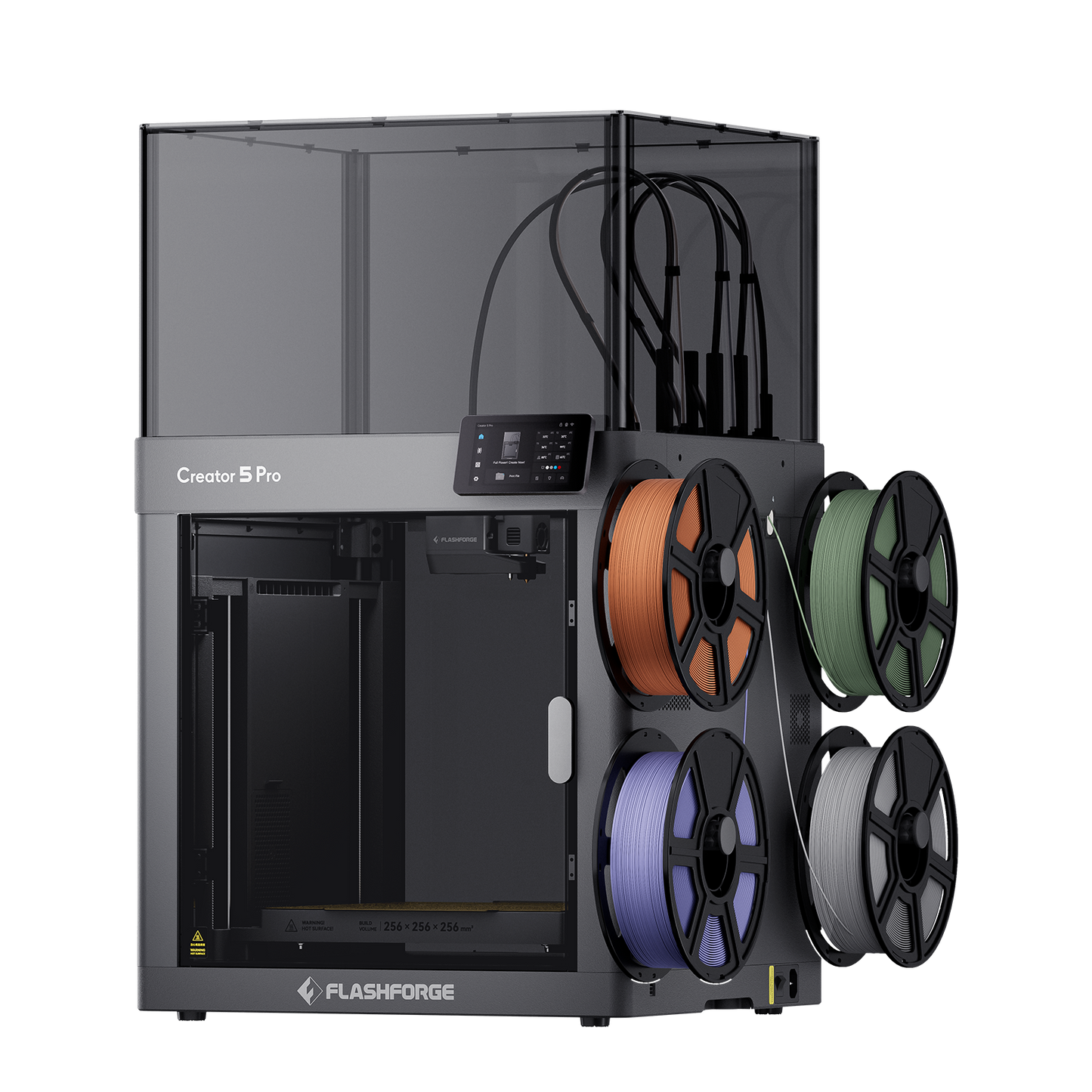

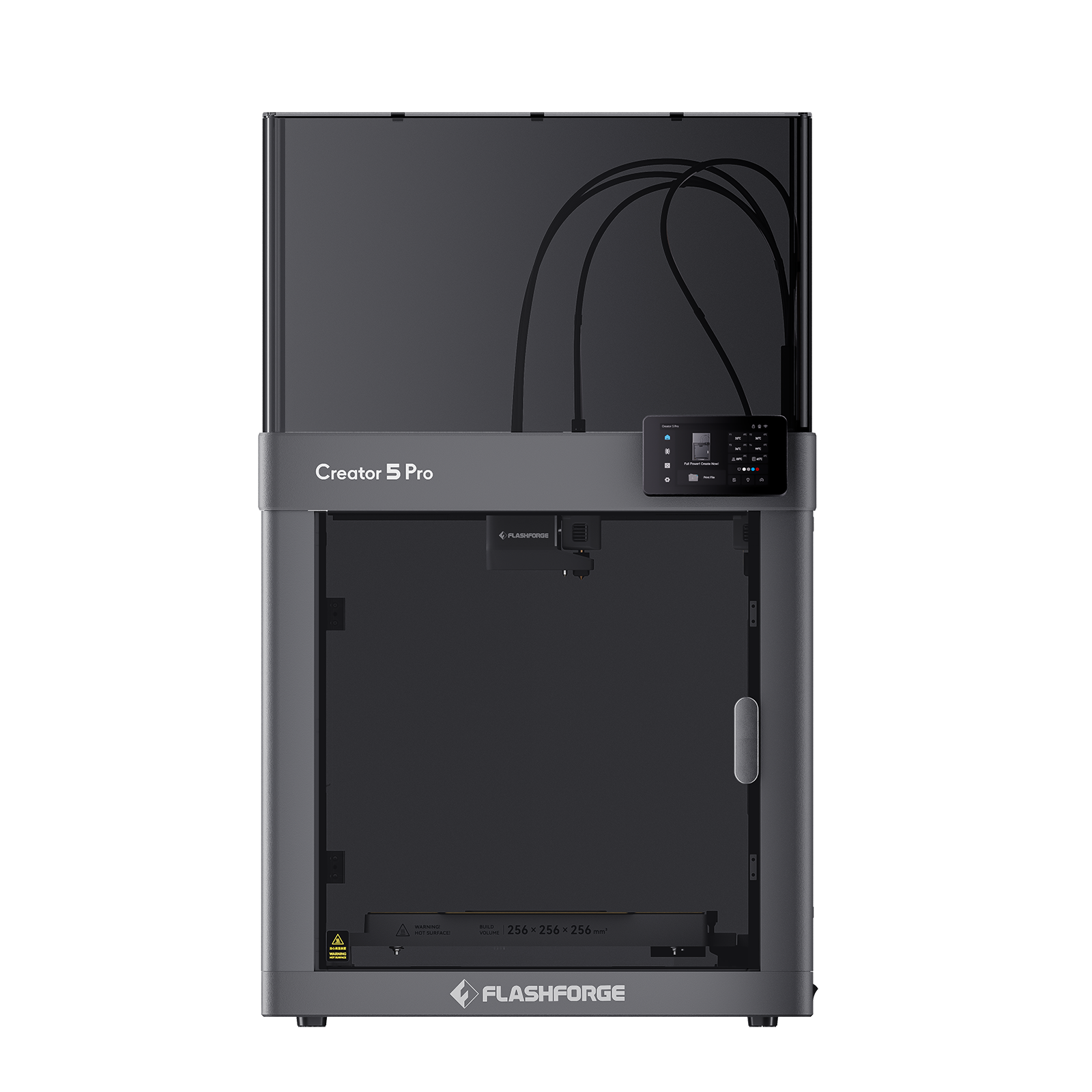

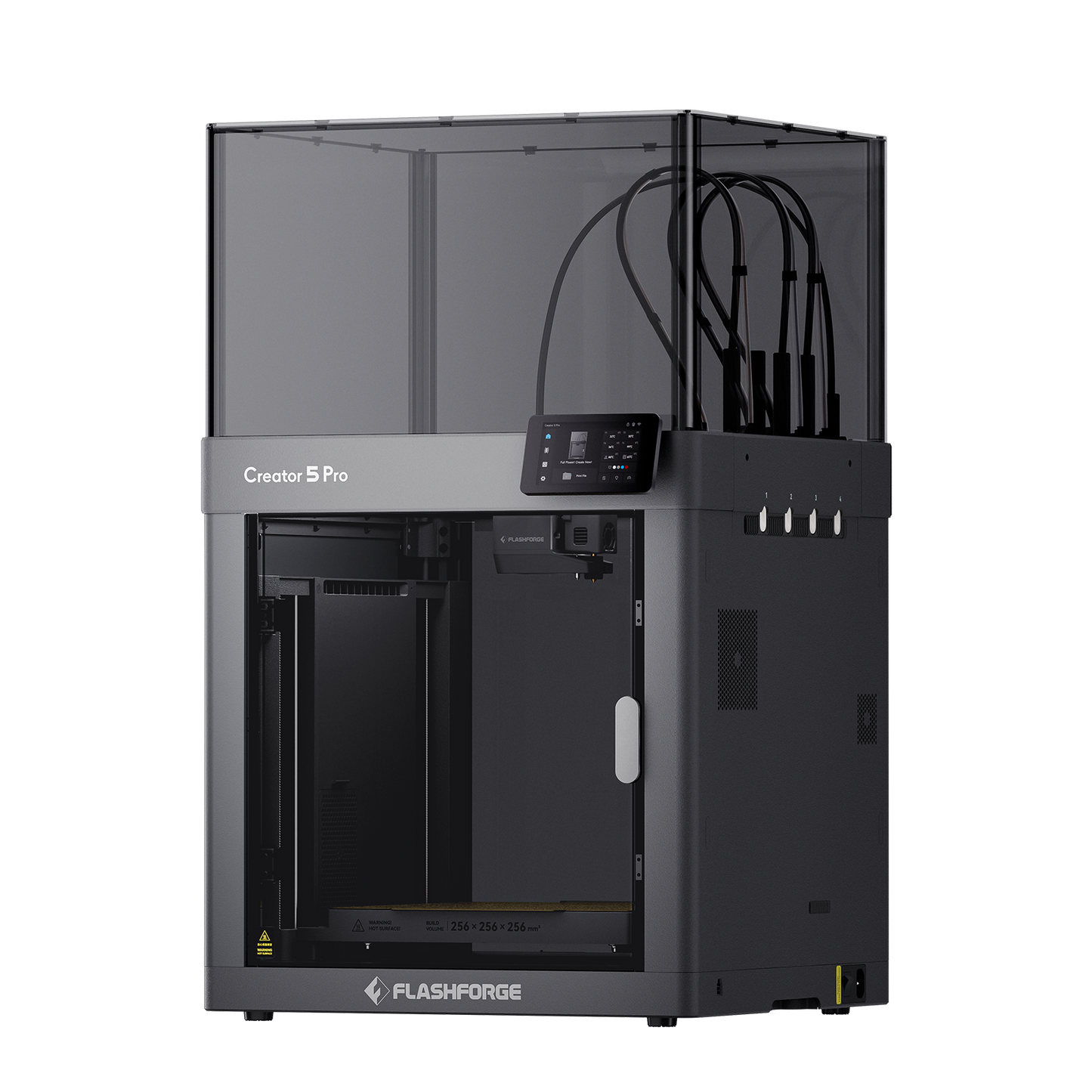

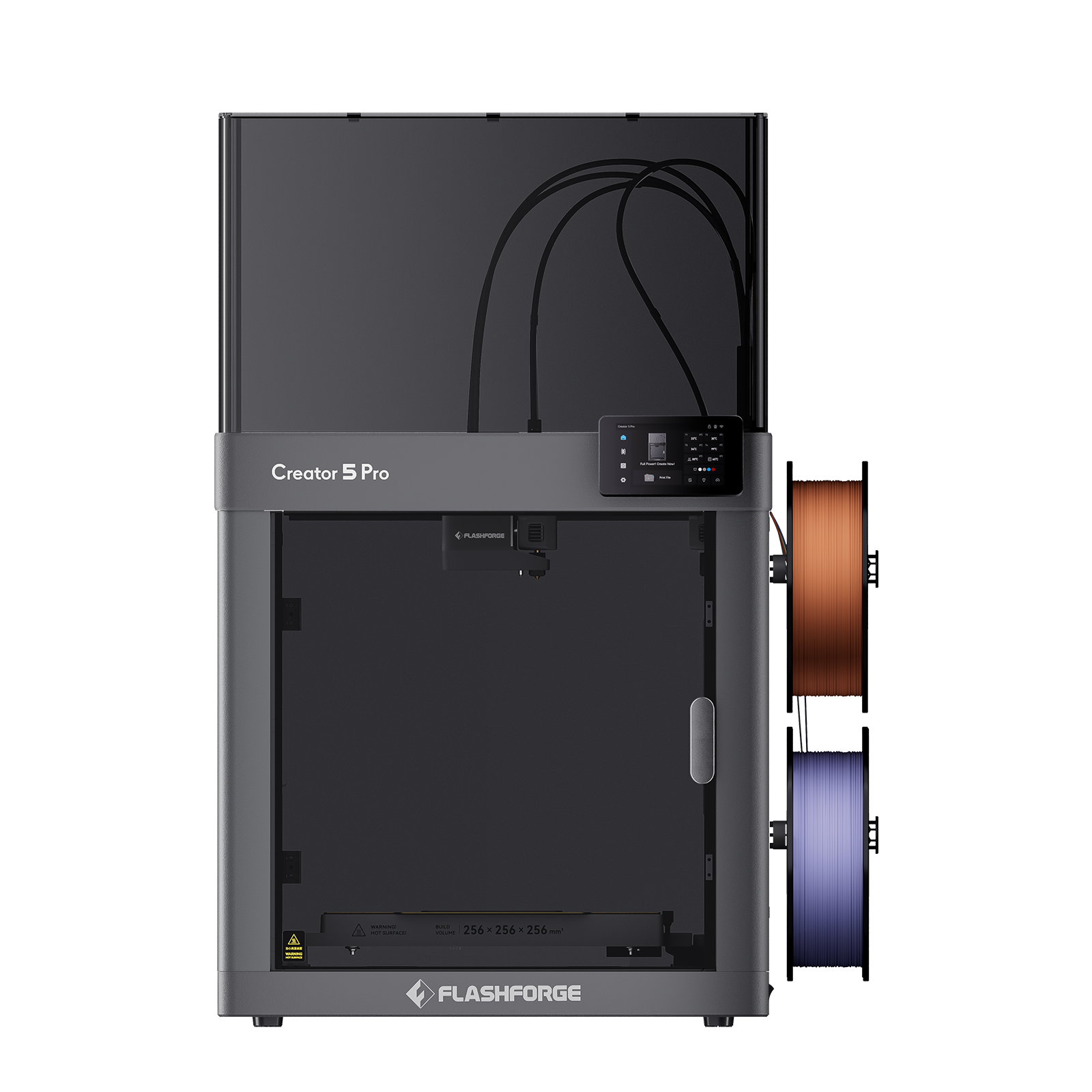

Flashforge Creator 5 Pro 4-Toolhead 3D Printer
Flashforge Creator 5 Pro 4-Toolhead 3D Printer
Couldn't load pickup availability
Flashforge Creator 5 Pro Overview
The Flashforge Creator 5 Pro takes the four-toolhead FlashSwap system from the Creator 5 and adds a fully enclosed, actively heated chamber, opening the door to engineering-grade materials like ABS, ASA, and carbon-fiber composites. With near-zero purge waste, HEPA and carbon filtration, and a heated chamber up to 65C, it is built for small businesses and serious makers who need both color flexibility and material toughness.
Key Features and Benefits

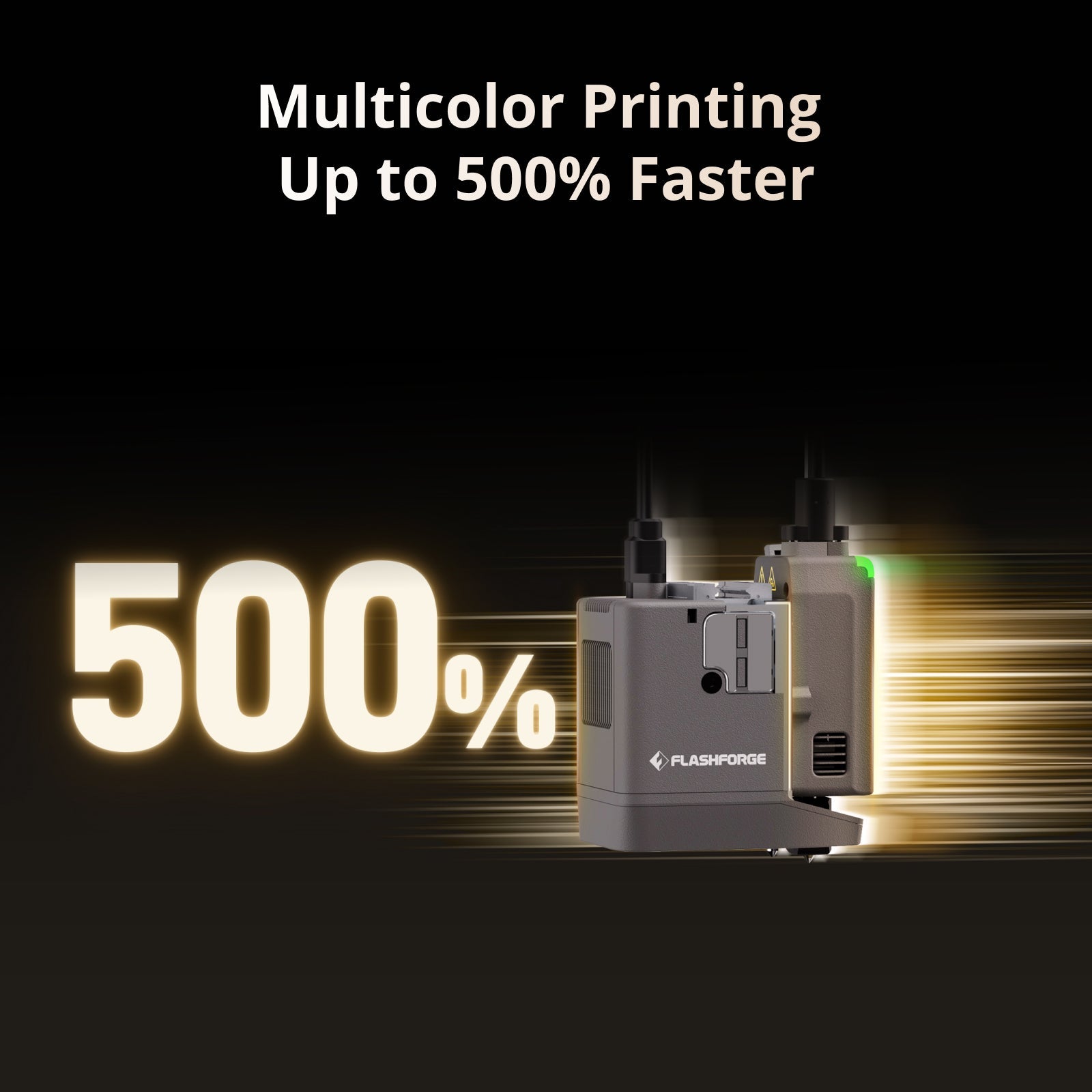

- 4 Independent Toolheads with FlashSwap: True multi-color and multi-material printing with toolheads that swap in seconds and minimal purge waste.

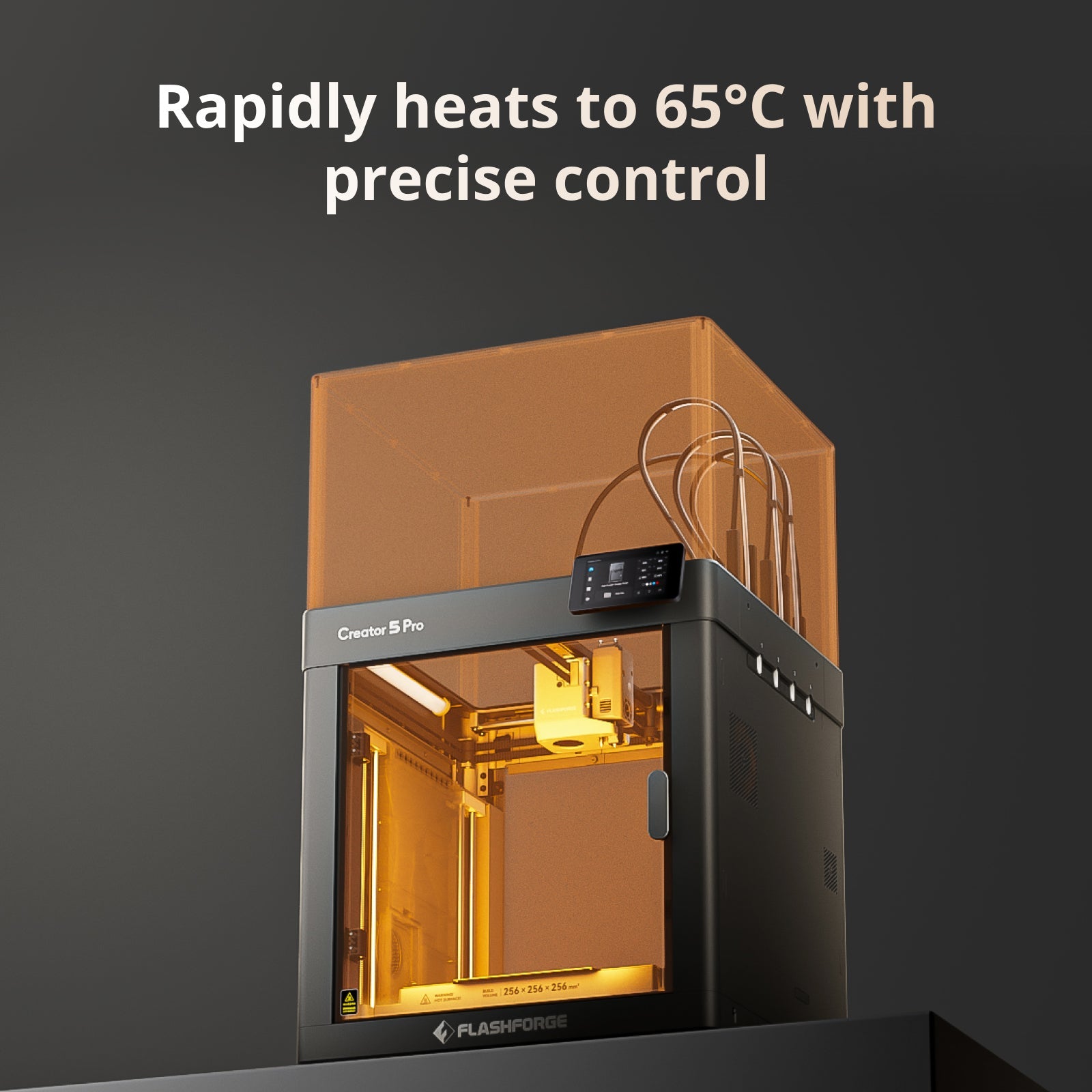

- Active Heated Chamber up to 65C: Keeps internal temperature stable for warp-free printing of ABS, ASA, and other demanding materials.
- Fully Enclosed, Rigid Frame: Adds stability and reduces operating noise compared to an open-frame design.

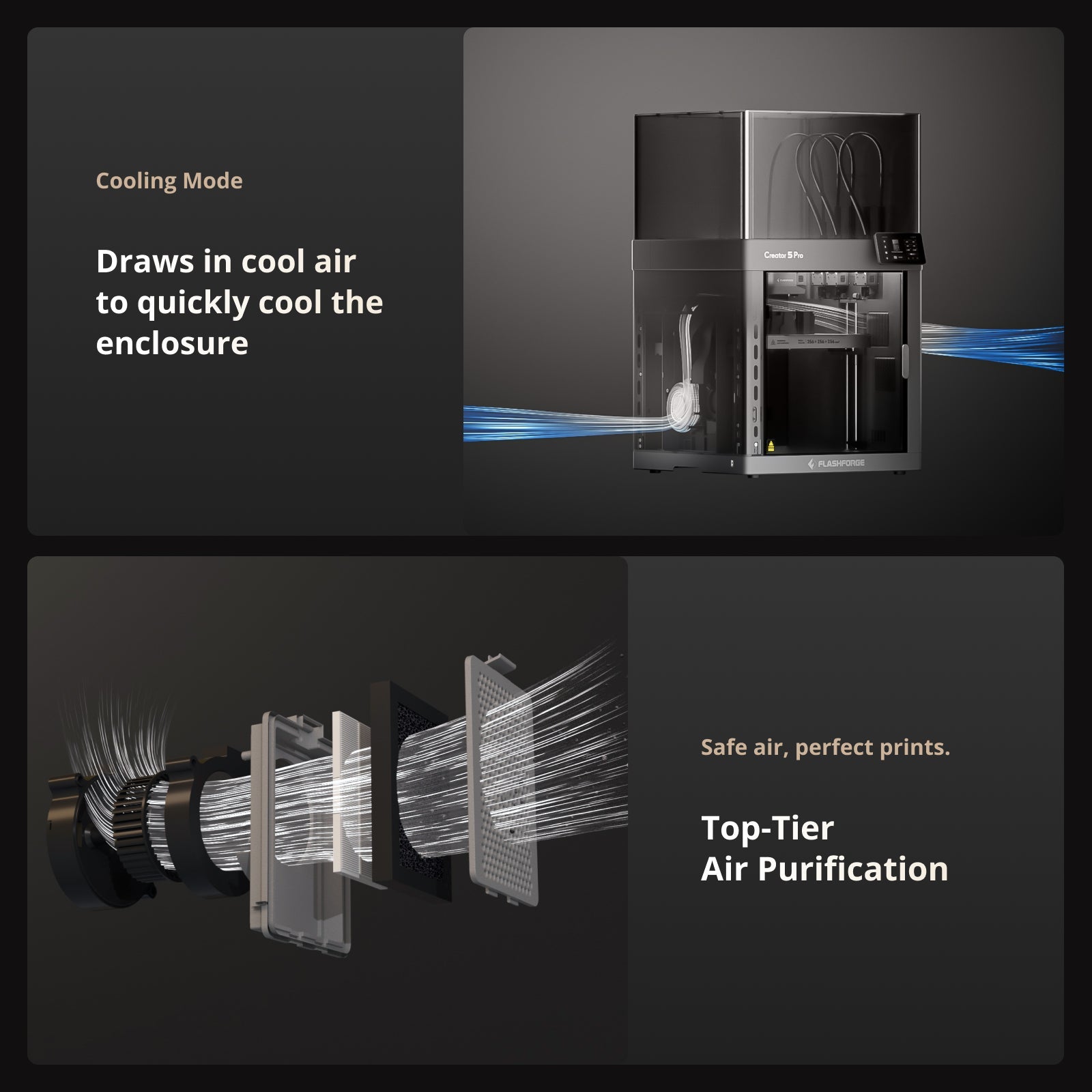

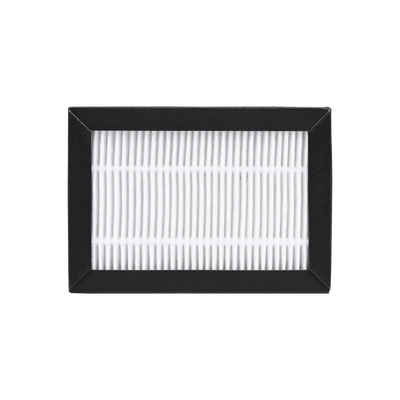

- HEPA and Carbon Air Filtration: Medical-grade H13 HEPA paired with coconut carbon filtration removes dust and VOCs from ABS, ASA, and nylon prints.
- 320C Nozzle Temperature: Supports an extensive material list, including PA-CF, PET-CF, PPS-CF, and other engineering-grade composites.
- 600 mm/s Top Speed: CoreXY motion with 30,000 mm/s squared acceleration for fast, accurate prints.
- Continuous Airflow System: Automatically adjusts cooling and filtration based on the material being printed.
- Door-Open and Chamber Temperature Monitoring: Added safety sensors beyond the standard Creator 5 for more stable, production-ready operation.
Who Is This For?
The Creator 5 Pro is built for small business owners and Etsy or Amazon sellers producing durable, functional parts in ABS or ASA, as well as makers and engineers who need to combine materials like carbon-fiber composites and flexible TPU in a single enclosed, filtered print job. It is also a strong fit for shops and classrooms that want a quieter, cleaner-running multi-color machine.
Full Technical Specifications
| Printing Technology | FDM (Fused Deposition Modeling) |
|---|---|
| Build Volume | 256 x 256 x 256 mm |
| Toolheads | 4 independent toolheads, FlashSwap tool-changing system |
| Max Nozzle Temperature | 320C |
| Max Bed Temperature | 120C |
| Max Chamber Temperature | 65C, actively heated |
| Max Print Speed | Up to 300 mm/s, travel up to 600 mm/s |
| Max Acceleration | 30,000 mm/s squared |
| Nozzle Diameter | Standard 0.4mm, optional 0.25mm, 0.6mm, 0.8mm |
| Filament Diameter | 1.75 mm |
| Extruder Type | Direct drive, hardened steel nozzles |
| Construction | CoreXY, fully enclosed, rigid frame |
| Compatible Materials | PLA, PETG, TPU-90A, TPU-95A, TPU-64D, PLA-CF, PETG-CF, SILK, PVA, BVOH, ABS, ASA, PA-CF, PET-CF, PAHT-CF, ASA-CF, ASA-GF, ABS-GF, PPA-CF, PPS-CF, HIPS |
| Bed Leveling | Fully automatic, with toolhead offset calibration |
| Build Plate | Flexible PEI build plate |
| Air Filtration | H13 HEPA (medical grade) and coconut carbon |
| Software Compatibility | Orca-Flashforge, Flash Studio, FlashMaker |
| Connectivity | Dual-band Wi-Fi, LAN, USB |
| Camera | Built-in 1280 x 720 monitoring camera with time-lapse |
| Safety Features | Filament runout detection, filament tangle detection, door-open detection, chamber temperature monitoring |

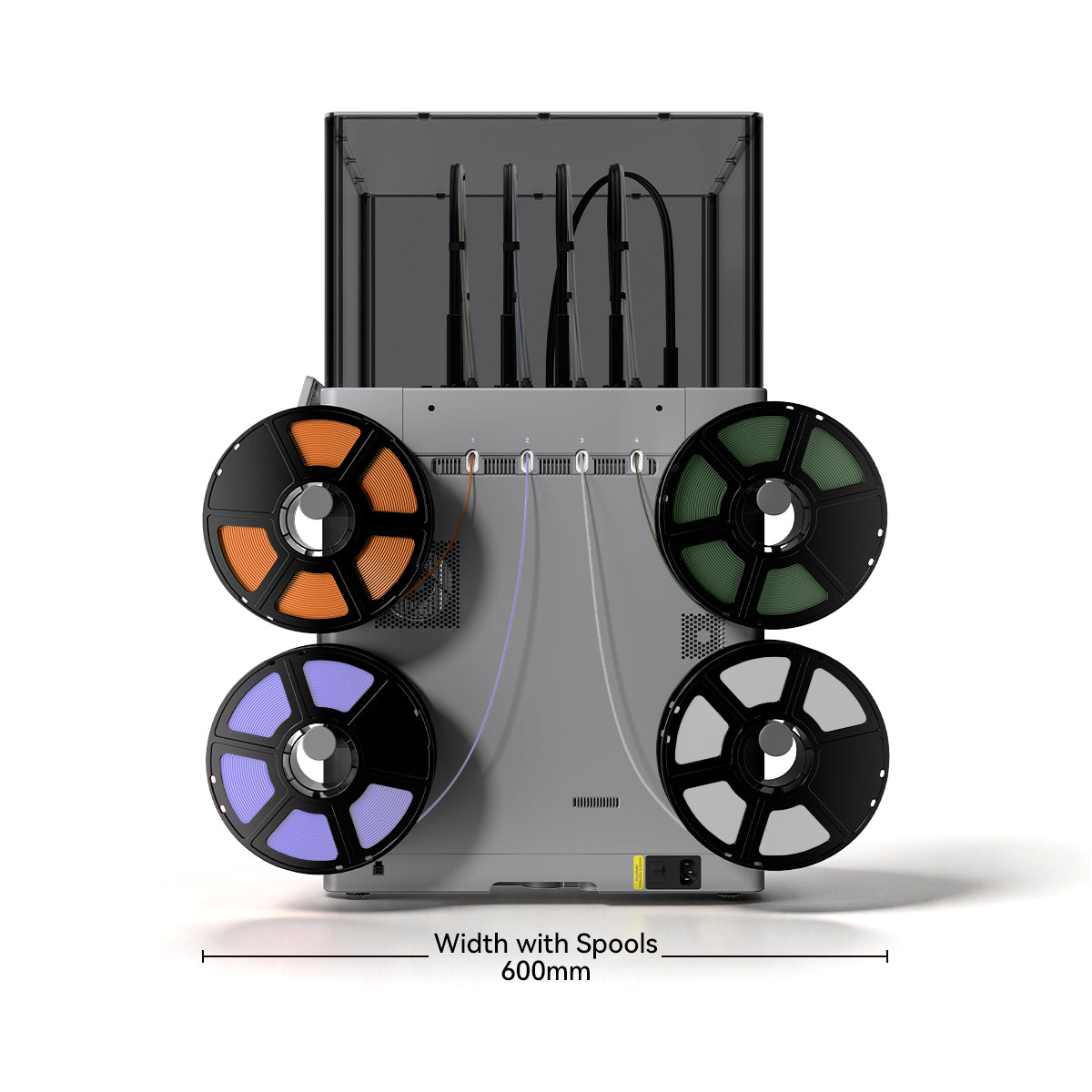

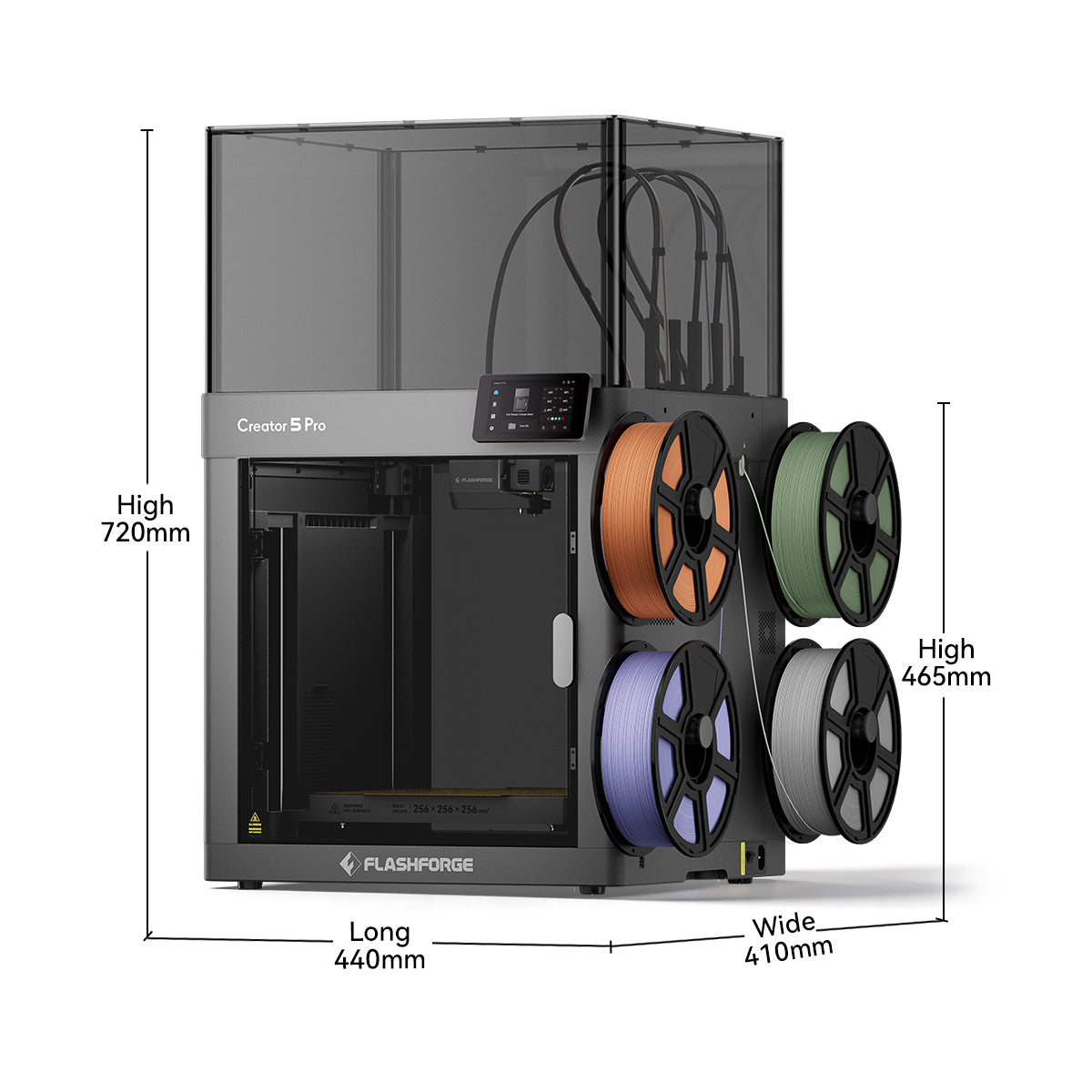

| Dimensions | 520 x 425 x 722 mm (including filament tubes and holders) |
| Warranty | 1 year limited, 3 months on extruder parts |
Frequently Asked Questions
What materials can the Flashforge Creator 5 Pro engrave and cut?
The Creator 5 Pro is a 3D printer, not a laser engraver or cutter. Its enclosed, heated chamber and 320C nozzles support an extensive material list, including PLA, PETG, TPU, ABS, ASA, and carbon-fiber and glass-fiber reinforced engineering filaments.
What software is the Flashforge Creator 5 Pro compatible with?
The Creator 5 Pro works with Orca-Flashforge and Flash Studio for slicing, plus the FlashMaker app for mobile monitoring, and connects over dual-band Wi-Fi, LAN, or USB.
Is the Flashforge Creator 5 Pro safe to use at home or in a small shop?
Yes. The fully enclosed chamber combined with H13 HEPA and coconut carbon filtration is designed to capture dust and VOCs released by ABS, ASA, and nylon, and the printer includes door-open detection and chamber temperature monitoring for added safety.
Does the Flashforge Creator 5 Pro require assembly, or does it arrive ready to use?
The Creator 5 Pro ships mostly assembled. After unboxing, you run the guided calibration routine, which includes bed leveling, Z-offset tuning, and toolhead alignment, typically completed in 15 to 20 minutes.
