Flashforge Creator 5 Overview

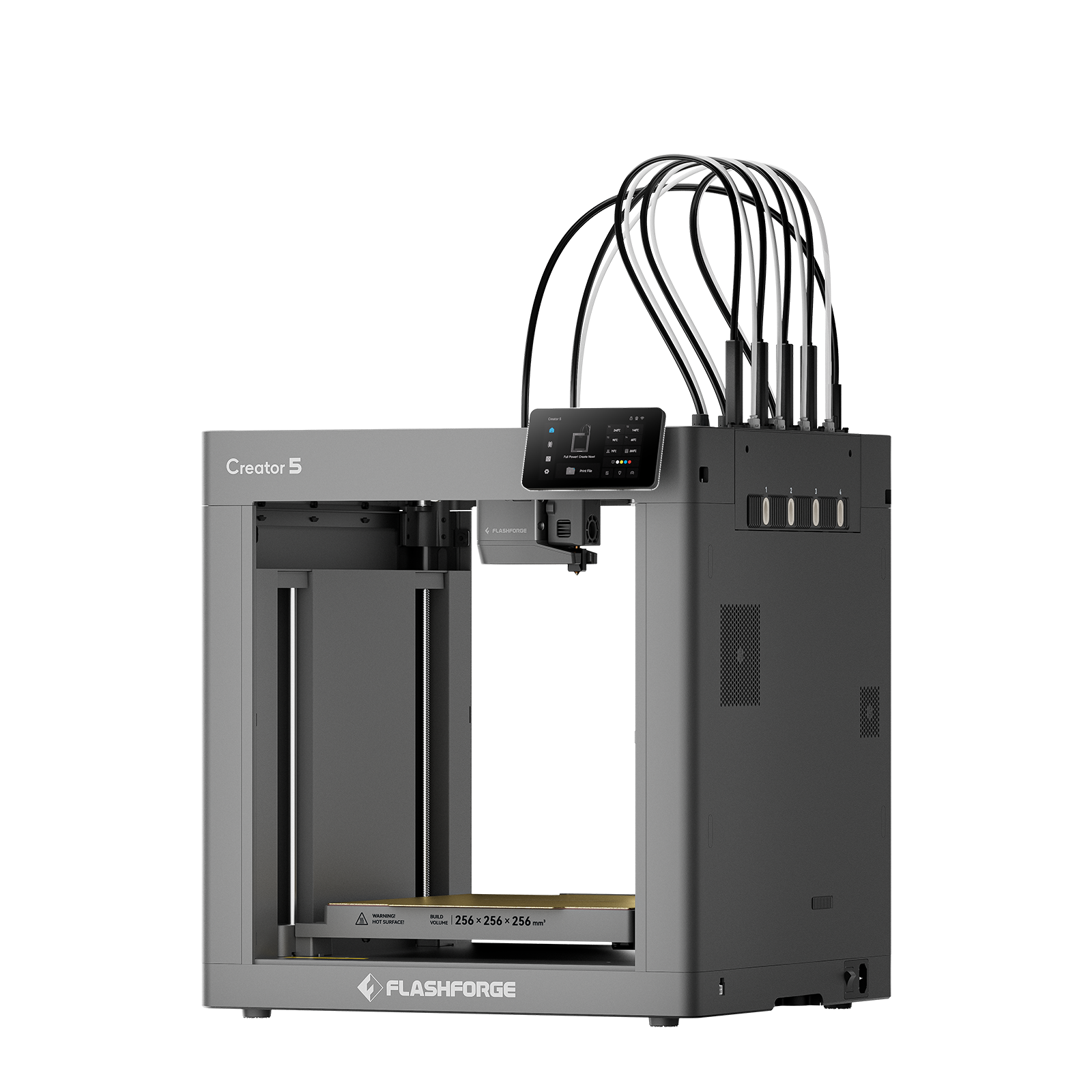

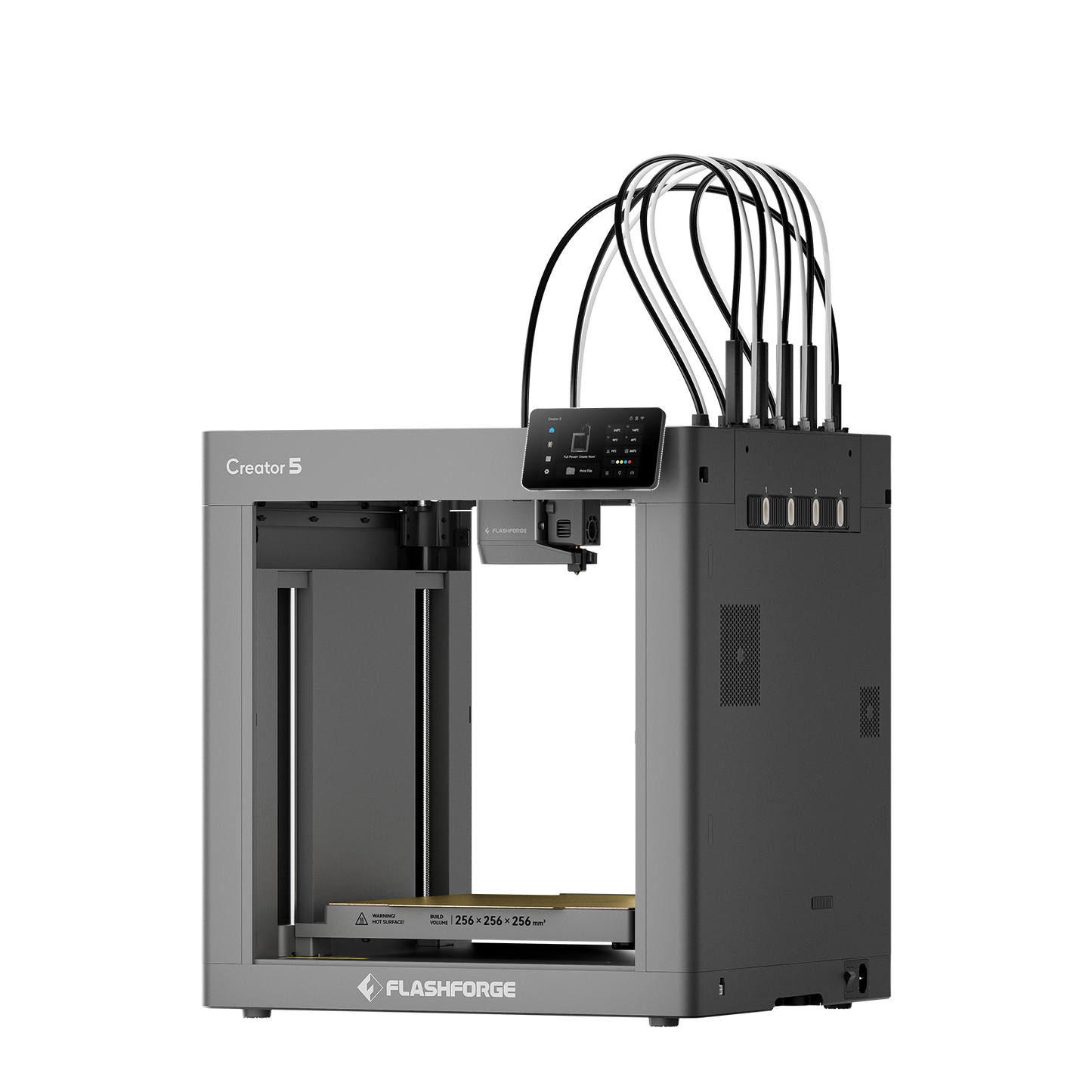

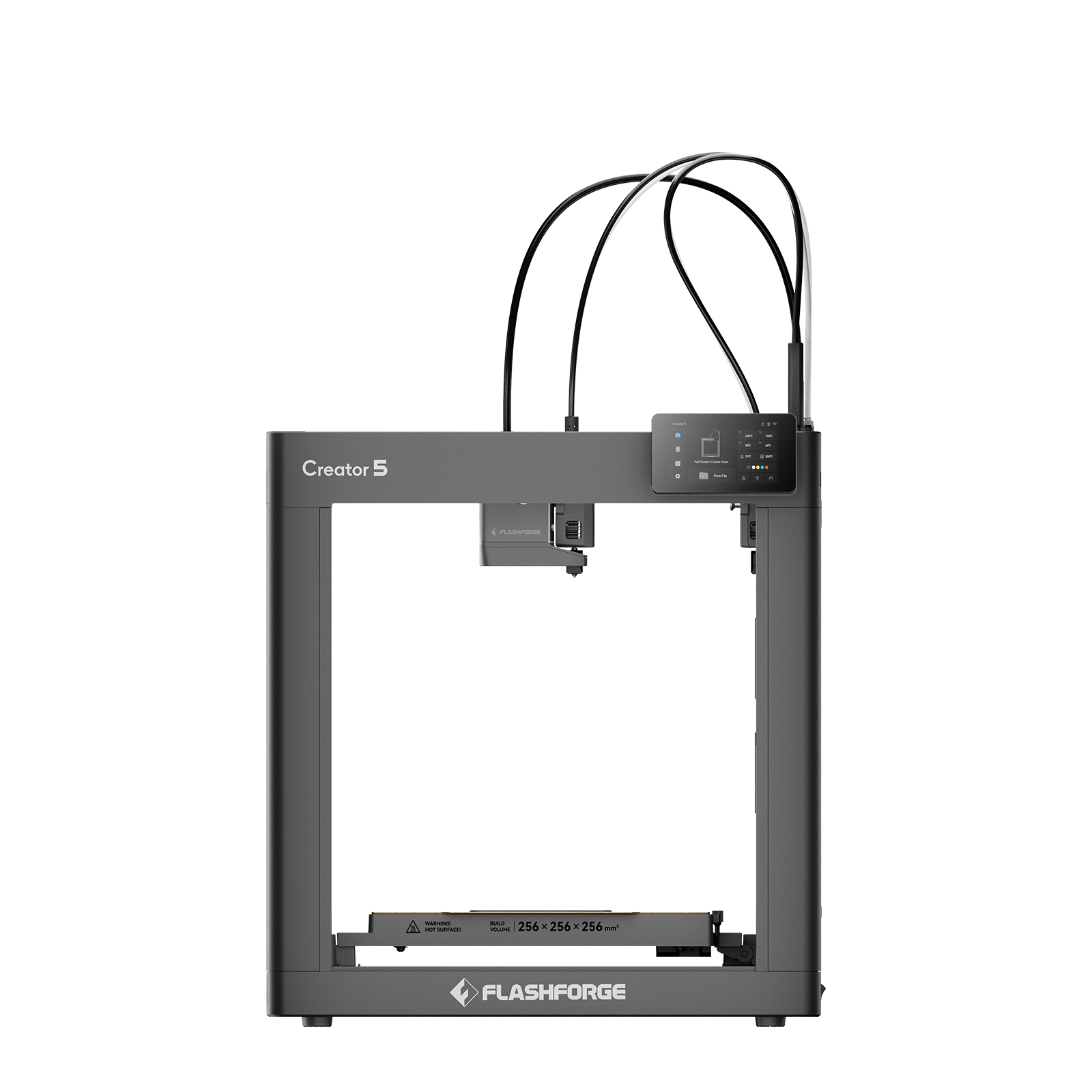

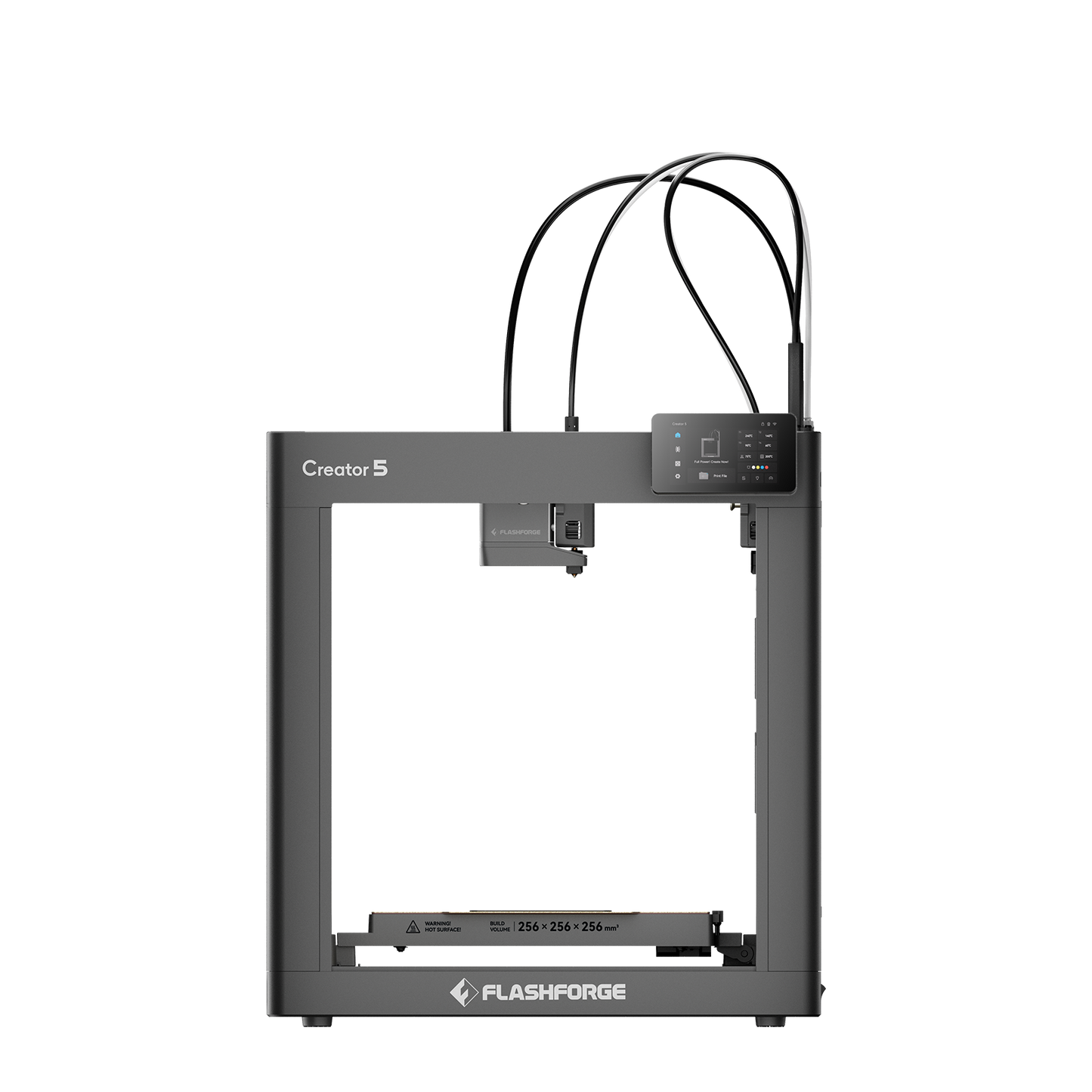

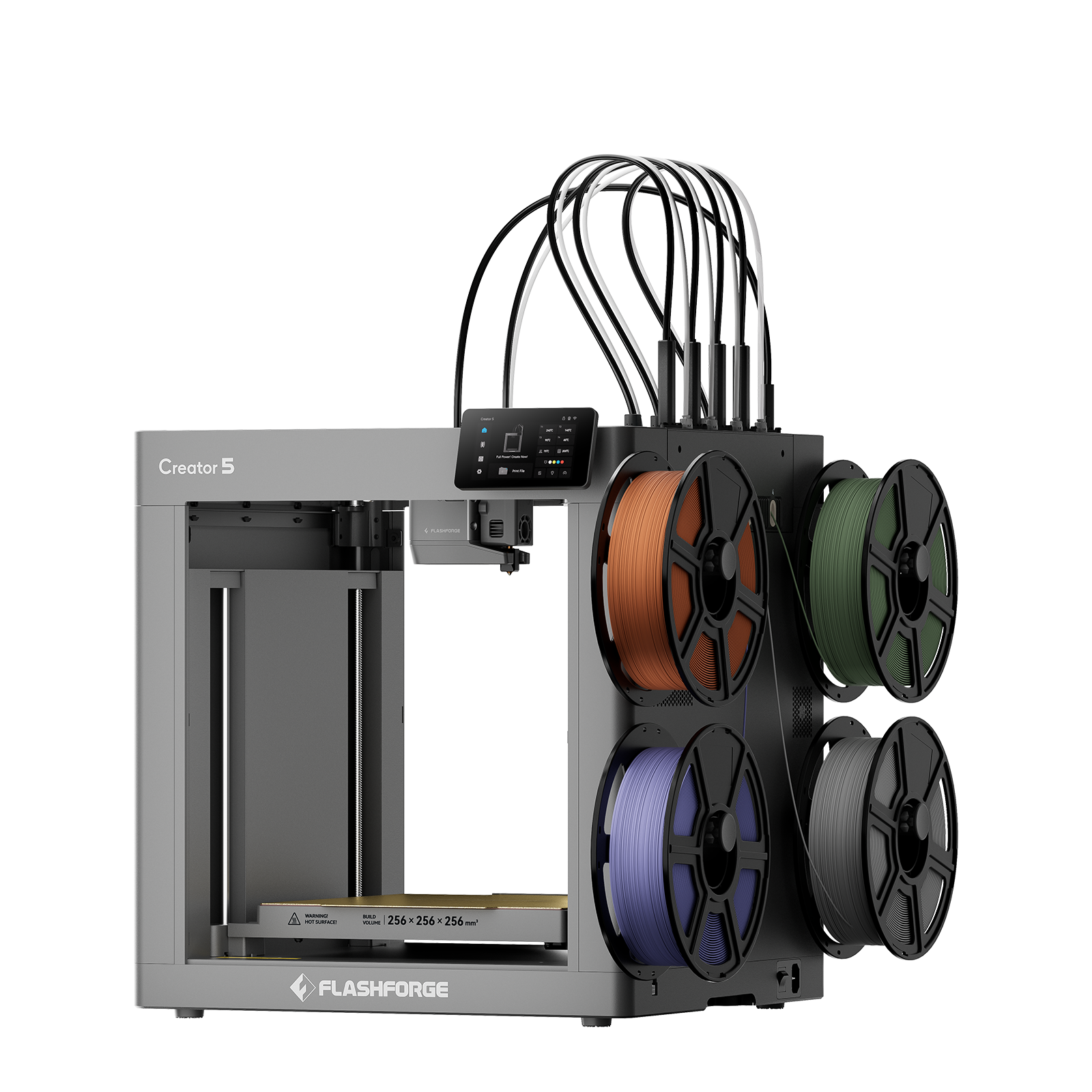

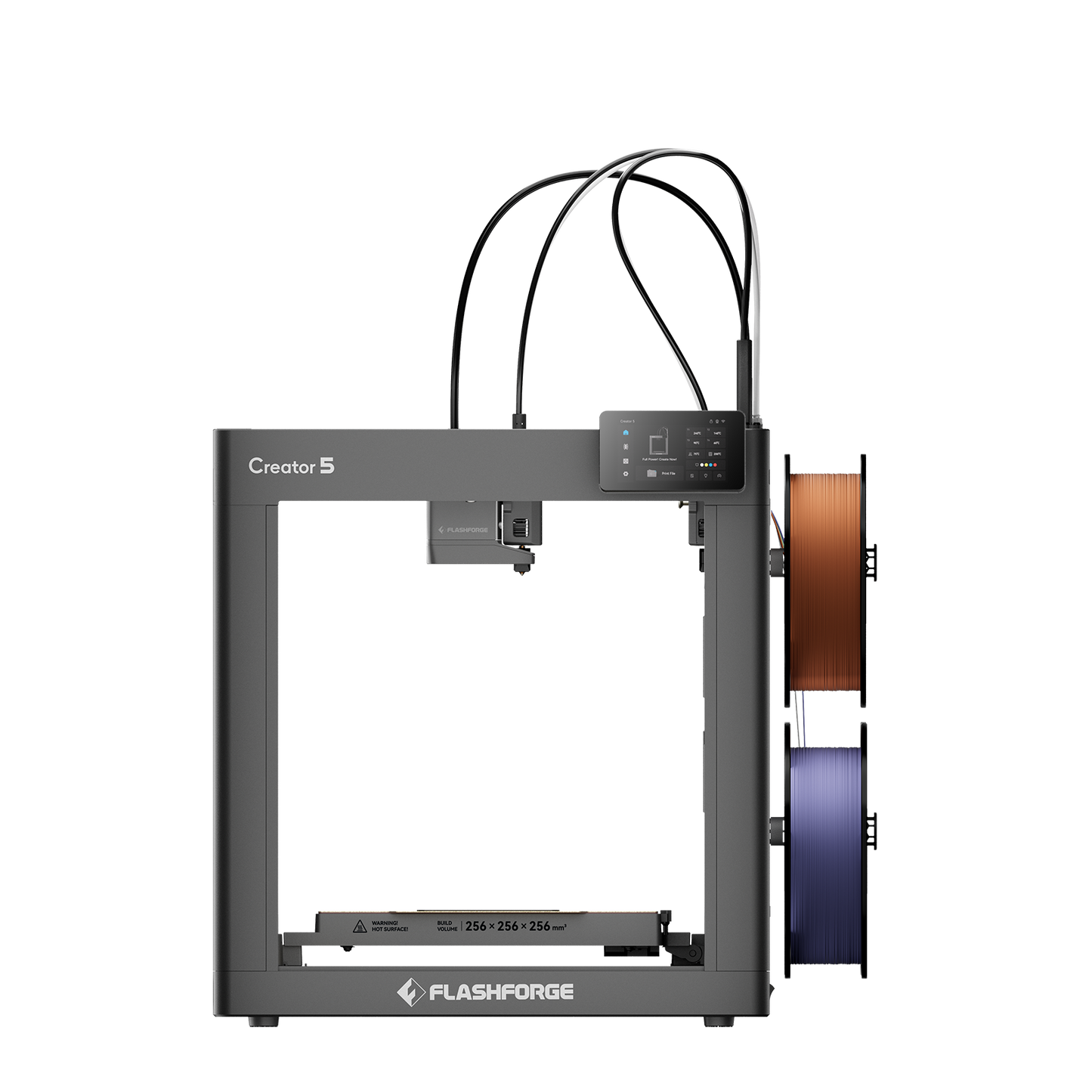

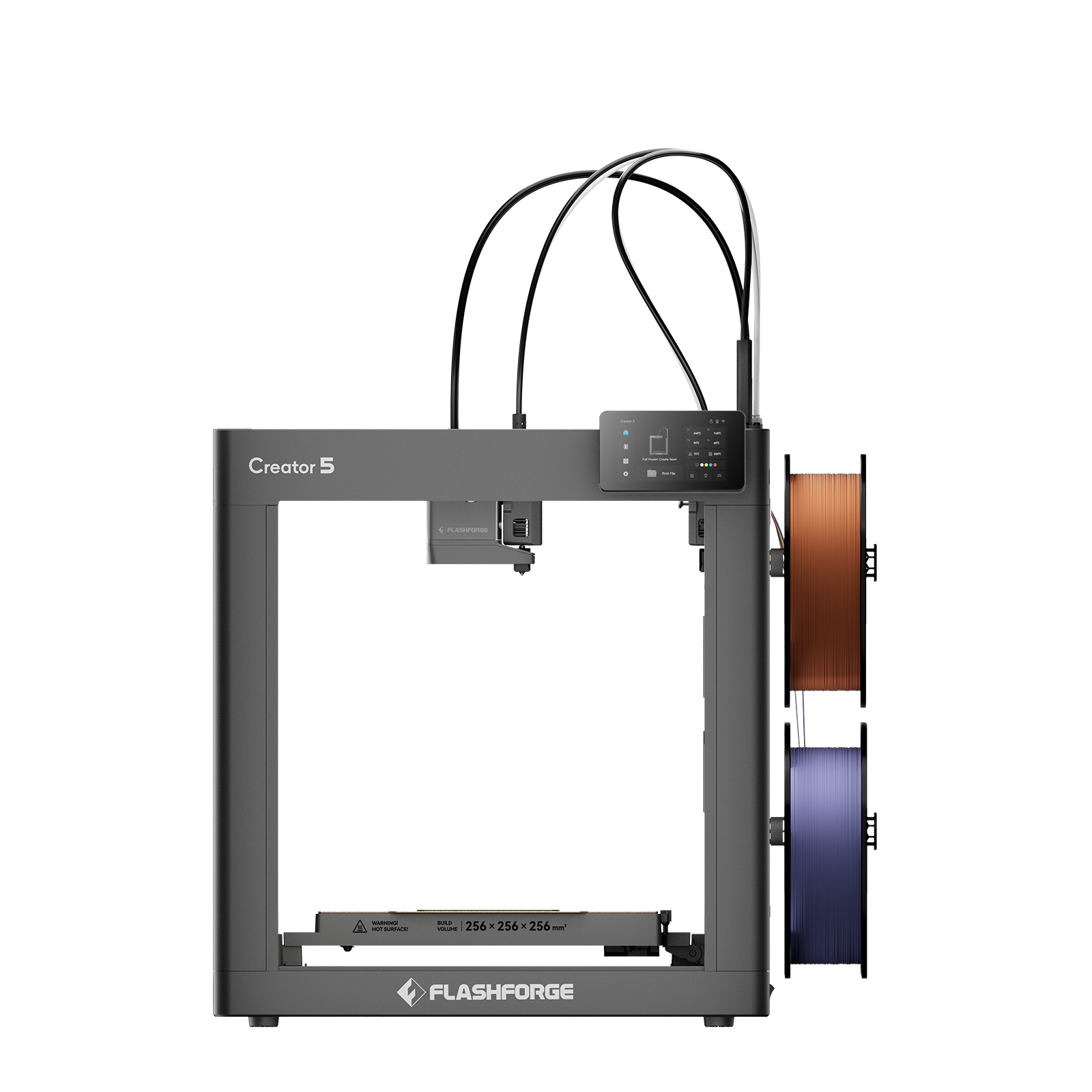

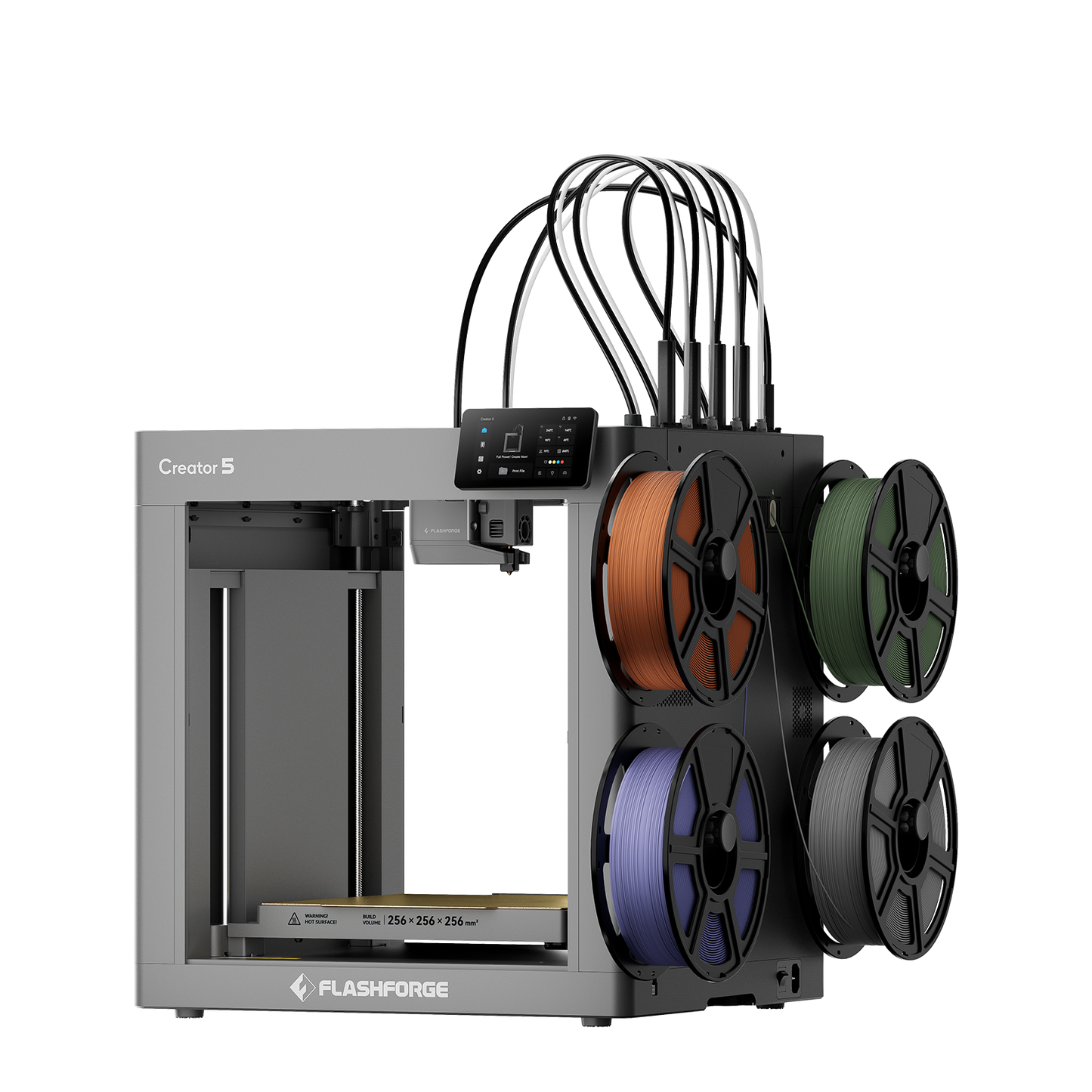

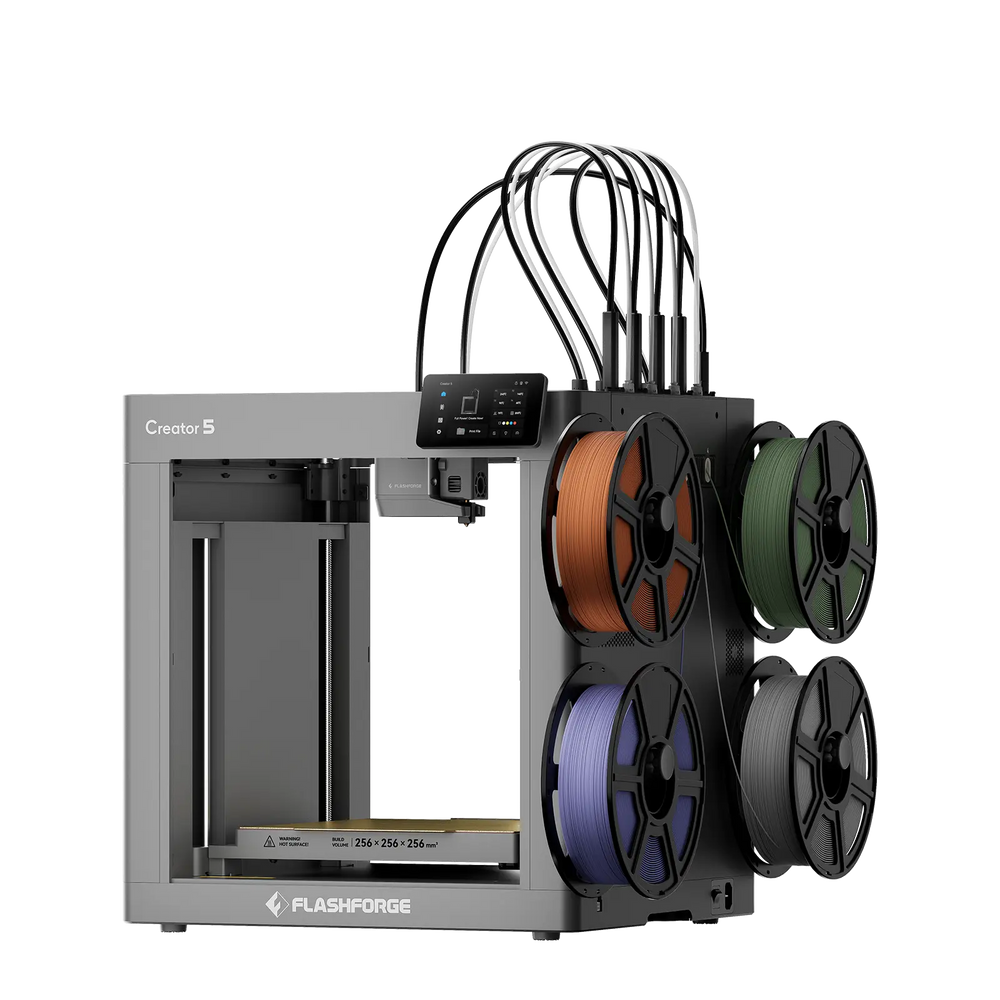

The Flashforge Creator 5 is a four-toolhead 3D printer built around FlashSwap, a true tool-changing system that swaps entire print heads instead of pushing filament through one shared nozzle. The result is fast multi-color and multi-material printing with almost no purge waste, making it a strong fit for makers and small businesses who want serious color and material flexibility without the cost of a traditional industrial tool changer.
Key Features and Benefits
- 4 Independent Toolheads: Each toolhead has its own nozzle, heater, and direct drive extrusion for true multi-color and multi-material printing in a single job.
- FlashSwap Tool Changing: Toolheads swap in seconds with near-zero purge waste, cutting wasted filament and color-change time dramatically versus single-nozzle systems.
- 600 mm/s Top Speed: A CoreXY motion system with 30,000 mm/s squared acceleration delivers fast prints without sacrificing accuracy.
- 320C Nozzle Temperature: Handles everything from PLA and PETG to TPU and PLA-CF for a wide range of project types.
- Fully Automatic Calibration: Guided bed leveling, Z-offset tuning, and toolhead alignment bring the printer dial-in ready in around 15 to 20 minutes.
- 256 x 256 x 256 mm Build Volume: Plenty of room for functional prototypes, multi-part assemblies, and detailed models.
- Built-In Monitoring Camera: Keep an eye on multi-material jobs and toolhead changes in real time, with time-lapse capture.
- Filament Runout and Tangle Detection: Helps prevent failed prints on long, multi-color jobs.
Who Is This For?
The Creator 5 is built for small business owners and Etsy or Amazon sellers who want to offer true multi-color products without the waste of purge-tower printing, as well as makers and educators who need to mix materials, such as a rigid body with a flexible TPU component, in a single print. Hobbyists upgrading from a single-color machine will appreciate the speed and flexibility this tool-changing system adds.
Full Technical Specifications
| Printing Technology | FDM (Fused Deposition Modeling) |
|---|---|
| Build Volume | 256 x 256 x 256 mm |
| Toolheads | 4 independent toolheads, FlashSwap tool-changing system |
| Max Nozzle Temperature | 320C |
| Max Bed Temperature | 120C |
| Max Print Speed | Up to 300 mm/s, travel up to 600 mm/s |
| Max Acceleration | 30,000 mm/s squared |

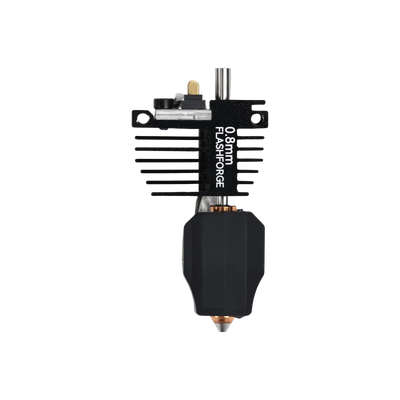

| Nozzle Diameter | Standard 0.4mm, optional 0.25mm, 0.6mm, 0.8mm |
| Filament Diameter | 1.75 mm |
| Extruder Type | Direct drive, hardened steel nozzles |
| Construction | CoreXY |
| Compatible Materials | PLA, PETG, TPU-90A, TPU-95A, TPU-64D, PLA-CF, PETG-CF, SILK, PVA, BVOH |
| Bed Leveling | Fully automatic, with toolhead offset calibration |

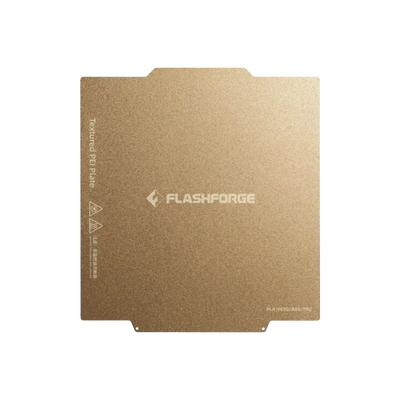

| Build Plate | Flexible PEI build plate |
| Software Compatibility | Orca-Flashforge, Flash Studio, FlashMaker |
| Connectivity | Dual-band Wi-Fi, LAN, USB |
| Camera | Built-in 1280 x 720 monitoring camera with time-lapse |
| Safety Features | Filament runout detection, filament tangle detection |
| Dimensions | 520 x 443 x 710 mm (including filament tubes and holders) |
| Warranty | 1 year limited, 3 months on extruder parts |
Frequently Asked Questions
What materials can the Flashforge Creator 5 engrave and cut?
The Creator 5 is a 3D printer, not a laser engraver or cutter. Its four toolheads print with PLA, PETG, TPU, PLA-CF, PETG-CF, silk filaments, and water-soluble supports like PVA and BVOH.
What software is the Flashforge Creator 5 compatible with?
The Creator 5 works with Orca-Flashforge and Flash Studio for desktop slicing, plus the FlashMaker app for mobile monitoring, and connects over dual-band Wi-Fi, LAN, or USB.
Is the Flashforge Creator 5 safe to use at home or in a small shop?
Yes. The Creator 5 includes filament runout and tangle detection to help prevent failed prints. As an open-frame design, we recommend a well-ventilated workspace, and the enclosed Creator 5 Pro is the better choice if you plan to print ABS or ASA regularly.
Does the Flashforge Creator 5 require assembly, or does it arrive ready to use?
The Creator 5 ships mostly assembled. After unboxing, you run the guided calibration routine, which includes bed leveling, Z-offset tuning, and toolhead alignment, typically completed in 15 to 20 minutes.
