Flashforge Guider 3 Ultra Overview
The Flashforge Guider 3 Ultra is a large-format, fully enclosed dual-extruder 3D printer built for continuous, production-level use. With a tall 600mm Z-height, 350C dual nozzles, and HEPA 13 filtration, it is designed for professionals and small businesses that need to print big parts and engineering-grade materials reliably, day after day.
Key Features and Benefits

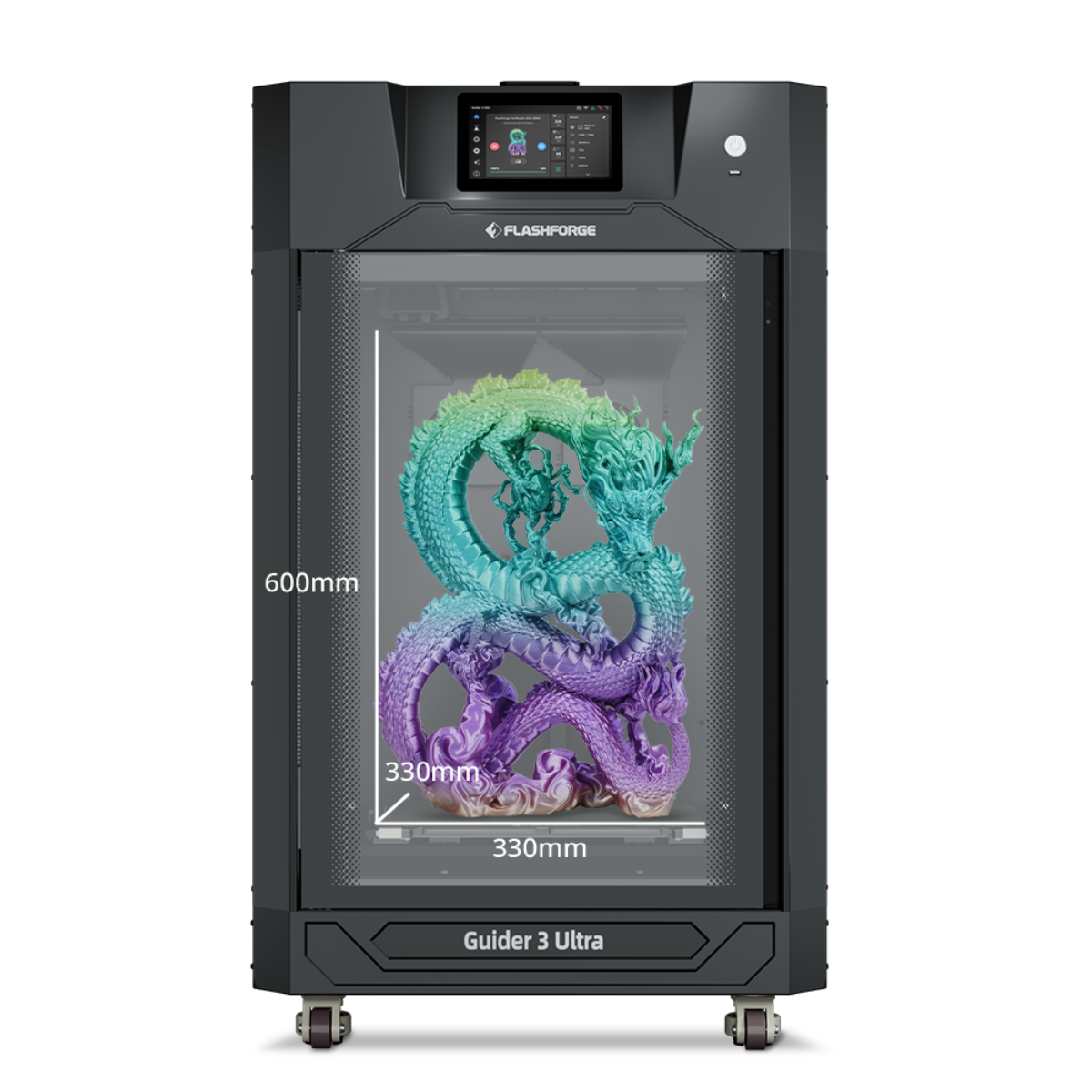

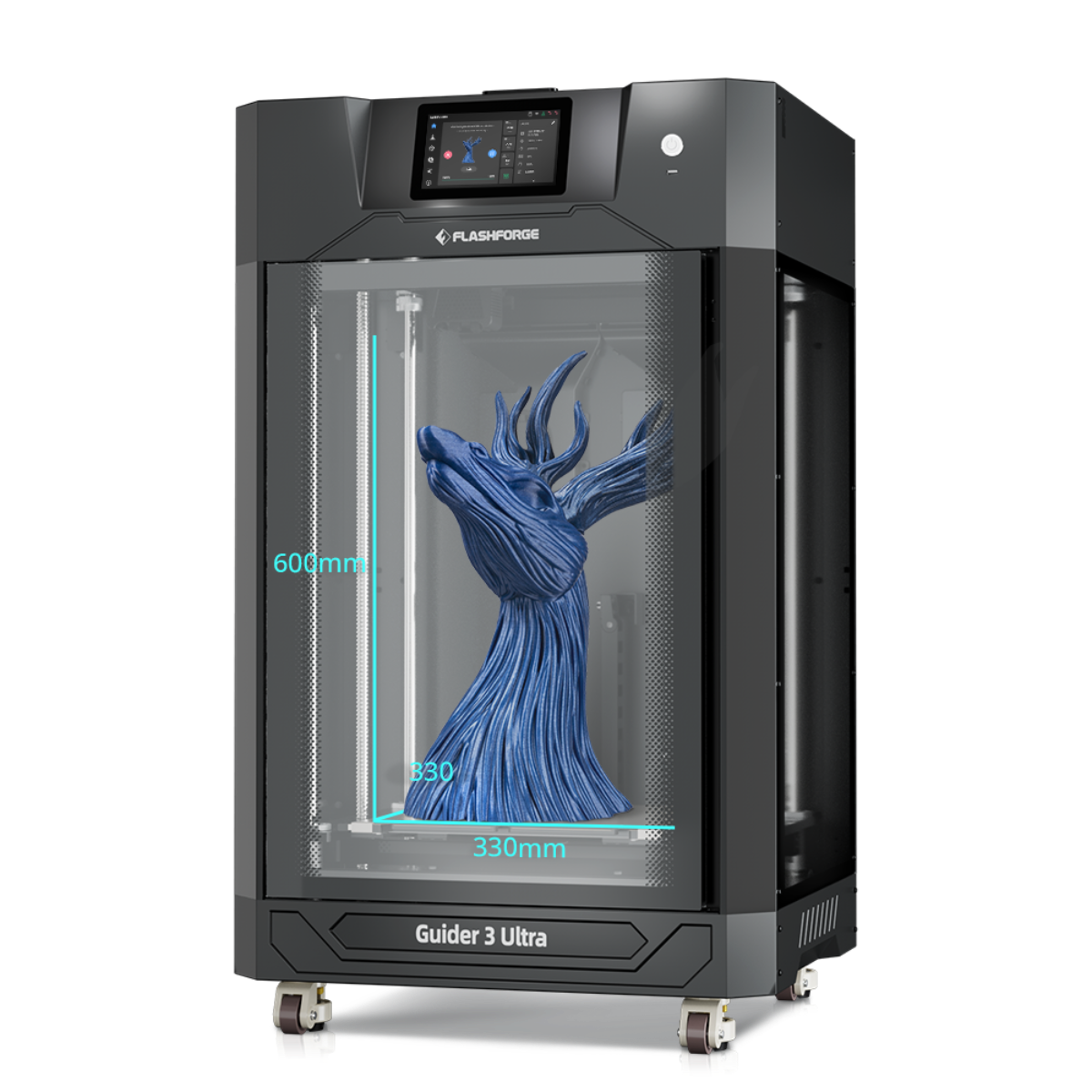

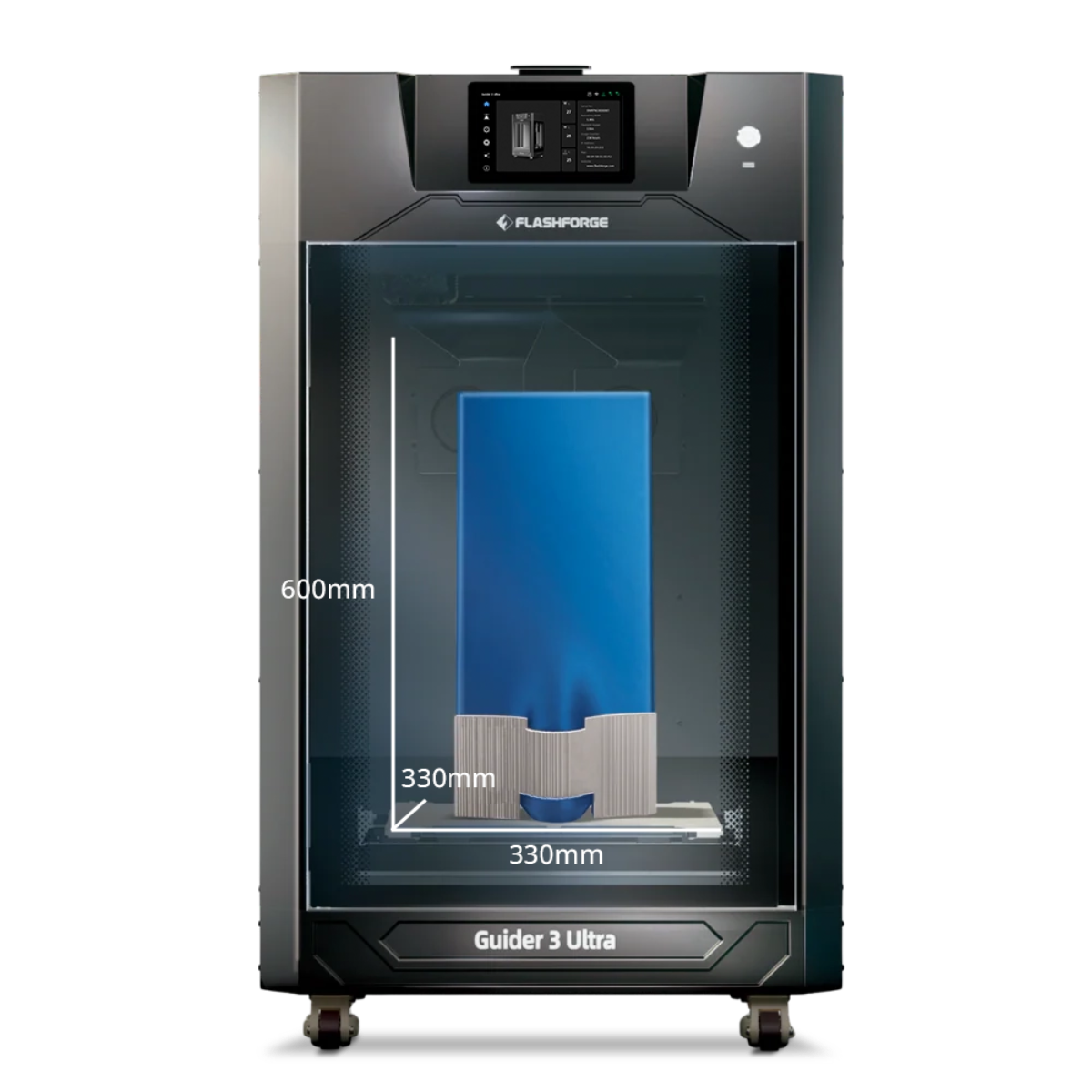

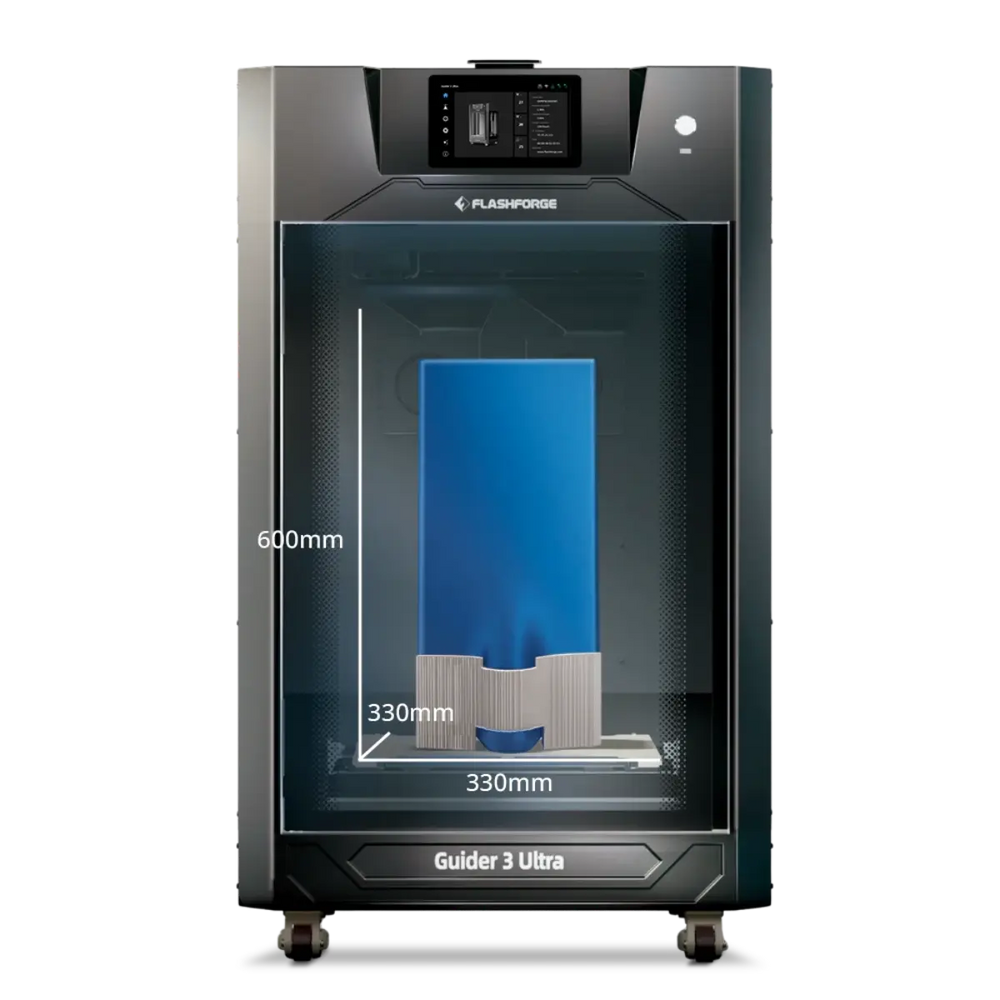

- 330 x 330 x 600 mm Build Volume: A tall single-extruder build area handles oversized props, architectural models, and large functional parts that smaller printers cannot.
- Dual Extruders: Print with two materials at once or use a soluble support material for complex overhangs and bridges.
- 350C Hardened Nozzles: Supports over 20 materials, including PA-CF, PET-CF, PAHT-CF, and other carbon and glass-fiber composites.
- HEPA 13 Air Filtration: Captures 99.97 percent of particles and VOCs for safer continuous operation with ABS, ASA, and nylon.
- Sealed Filament Drying Chamber: A built-in hygrometer and desiccant storage protect moisture-sensitive engineering filaments.
- Fully Automatic Bed Leveling: Hands-free calibration delivers consistent first layers across the large build plate.
- 500 mm/s Print Speed: CoreXY motion with dual TBI ball screws on the Z-axis keeps tall prints accurate at high speed.
- 7-Inch Touchscreen with Camera: Over 65 on-screen controls plus remote monitoring for production environments.
Who Is This For?
The Guider 3 Ultra is built for small businesses and production shops that need to run engineering-grade materials around the clock, as well as sign shops, cosplay makers, and prop builders who need a tall build volume for oversized parts. Woodworkers and jewelers expanding into custom fixtures or display pieces will also benefit from its material range and reliability.
Full Technical Specifications
| Printing Technology | FDM (Fused Deposition Modeling) |
|---|---|
| Build Volume | Single extruder: 330 x 330 x 600 mm; Dual extruder: 300 x 330 x 600 mm |
| Number of Extruders | 2 |
| Printing Precision | +/- 0.15 mm or +/- 0.002 mm/mm, whichever is larger |
| Position Precision | X/Y-axis 0.011 mm, Z-axis 0.0025 mm |
| Layer Thickness | 0.05 to 0.4 mm |
| Max Nozzle Temperature | 350C |
| Max Bed Temperature | 120C |
| Print Speed | 10 to 500 mm/s |
| Max Acceleration | 20,000 mm/s squared |
| Nozzle Diameter | Standard 0.4mm, optional 0.6mm, 0.8mm |
| Filament Diameter | 1.75 mm |
| Construction | CoreXY, fully enclosed |
| Compatible Materials | PLA, ABS, HIPS, ASA, PETG, CoPA, PLA-CF, PETG-CF, PAHT-CF, PAHT-GF, PET-CF, PET-GF, PA12-CF, PA-CF, PA-GF |
| Bed Leveling | Fully automatic |
| Build Plate | Flexible steel plate, PEI and PC sheet options |
| Air Filtration | HEPA 13, filters 99.97 percent of particles and VOCs |
| Software Compatibility | Orca-Flashforge, FlashPrint 5 |
| Connectivity | USB, Wi-Fi, Ethernet, cloud printing |
| Display | 7-inch HD touchscreen |
| Camera | Built-in, supports remote monitoring |
| Other Functions | Filament run-out reminder, power loss recovery, auto shutdown after print |
| Power Requirements | AC 100-240V, 50/60Hz, 850W max |
| Dimensions | 635 x 550 x 1070 mm |
| Weight | 70 kg net |
| Warranty | 1 year limited, 3 months on extruder parts |
Frequently Asked Questions
What materials can the Flashforge Guider 3 Ultra engrave and cut?
The Guider 3 Ultra is a 3D printer, not a laser engraver or cutter. Its 350C dual nozzles support a wide material range, including PLA, ABS, ASA, PETG, and carbon and glass-fiber reinforced engineering filaments like PA-CF and PET-CF.
What software is the Flashforge Guider 3 Ultra compatible with?
The printer works with Orca-Flashforge and FlashPrint 5, and connects over USB, Wi-Fi, or Ethernet, with cloud printing support for remote job management.
Is the Flashforge Guider 3 Ultra safe to use at home or in a small shop?
Yes. The fully enclosed design paired with HEPA 13 filtration captures 99.97 percent of particles and VOCs, making it suitable for continuous use with fume-emitting materials like ABS and ASA in a shop environment.
Does the Flashforge Guider 3 Ultra require assembly, or does it arrive ready to use?
The Guider 3 Ultra ships mostly assembled and includes fully automatic bed leveling, so setup mainly involves unboxing, connecting power, and running the calibration routine before your first print.
